The new Q-LED Rainbow Linear LED Lamp featuring RGBX can paint your world with vibrant saturated color and illuminate it with powerful white light from our 2000° Candlelight to 6000° Daylight Kelvin.

All Rainbow Lamps are equipped with onboard digital interface giving you command of Intensity, Kelvin, Hue & Saturation. Each lamp has a built in Lumen Radio CRMX chip for wireless control. The Rainbow can also be wired to DMX via Cat5 I/O Port.

The lamp is Self Ballasted AC input utilizing Neutrik True1 locking connector as well as locking Barrel connector for DC input.

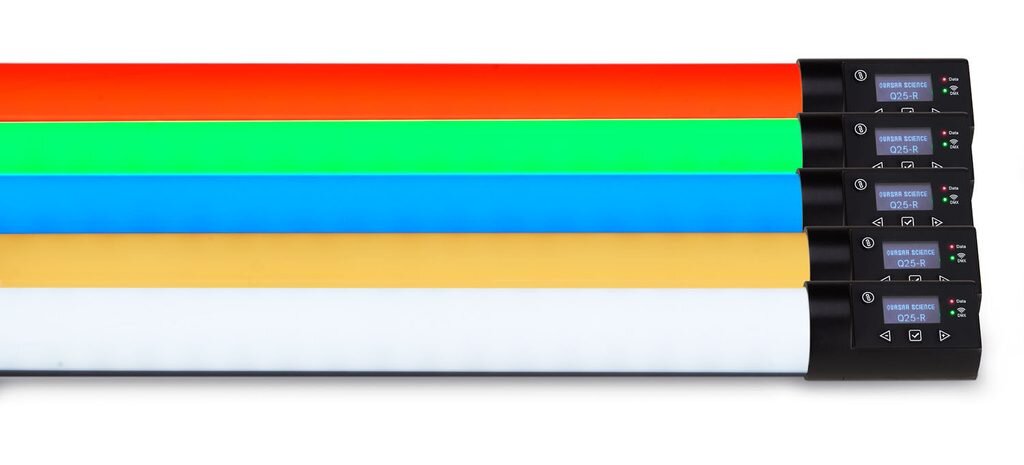

(Rainbow LEDs are sold as single units. 5 are shown in the photo to illustrate the RGBX Color System.)

Specifications:
• OLED screen with digital interface

• Wired DMX via Cat5/6

• Lead/Follow Mode for operation from one tube to control multiple tubes

• Manual Interface


Power Consumption:

• 120v = 0.22 amp
• 240v = 0.11 amp
• 12v = 1.90 amp
• 24v = 0.95 amp

• Wattage: Max 25 watts

Includes:

• 1 - Set of Q Boot-R (1 Power End, 1 Control End)
• 1 - 8' True 1 Power Connector Cable (Listings: UL, CB, KCC, JPN)
• 1 - Q-Upgrade USB Cable
• 1 - Instruction Card

Dimensions:

• 23.1 x 1.75 in (587 x 44.5 mm)
• 1.65 lbs (0.75 kg)

CONTROLLING RAINBOWS

5. Wireless Control from AKS  to Apple iPad/iTouch over WiFi

6. Wired Control hard line DMX cable to Lighting Console
