Kinoflo Freestyle Mini *PREORDER AVAILABLE NOW*
The FreeStyle LED family is known for its high color rendering white light, full hue and saturation color, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 100Watt controller. It has built-in Lumen Radio wireless DMX; no extra cost for wireless receiver accessories. The light can also be operated directly up to 50 feet away (2 x extension cables) from the controller via Kino Flo head cables. The Freestyle’s driver technology achieves bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles. There is no light level change when shifting from 2500K to 9900K, and the color doesn’t change when the light levels rise or fall.
The FreeStyle Mini LED System consists of four components: FreeStyle Mini LED Fixture, Mounting Plate, Extension Cable and FreeStyle 120 LED DMX Controller. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.
FreeStyle Mini Features
Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
Kelvin presets
Dial-in color temperature control between 2500K-9900K
Green/Magenta Control
Hue angle and Saturation adjustments
RGB control
CIE xy
FX Control
Camera Profiles LUTs
Color Space
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings
Light levels do not change when selecting Kelvin settings
No color shift while dimming
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 0.83A, 120VAC and 4.2A, 24VDC
Flicker-free, quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio®)
DMX Auto Terminate
LED Controller can power two FreeStyle Mini Fixtures – (Both at same settings)
FreeStyle Mini Design
KinoGrip Center Mount
Lightweight, compact, slim profile
Mounts to stand, light enough to be hand-held
FreeStyle Mini Modular Design

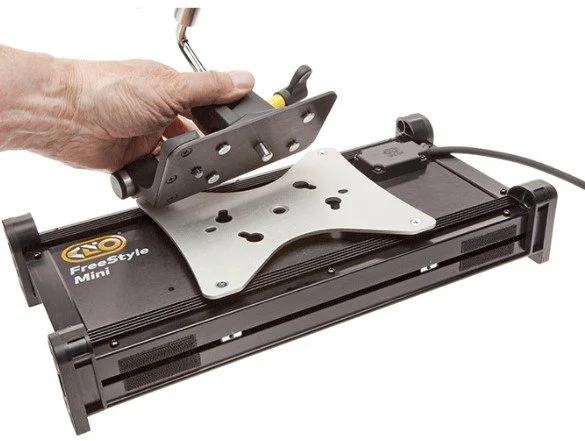

The FreeStyle Mini LED Fixture is comprised of a an LED panel and Louver. The Louver is held in place with Velcro fasteners. The fixture has a twist-on mating plate to accept a twist-on mount and has molded corners for additional rigging options. The compact lightweight fixture can also be hand-held. The FreeStyle Mini LED DMX Controller firmware is updatable from a PC using the Mini B USB data port.
