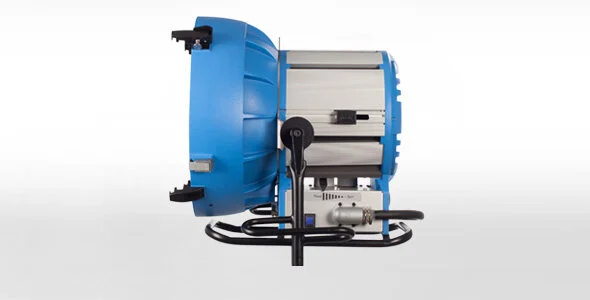

Arrimax M90 High Speed HMI System
Part No: L0.0006600
ARRI introduces a new fixture from the award-winning ARRIMAX/M-Series, thus completing the range between 1,200 W and 18,000 W. The M90 introduces a new power class for daylight fixtures at 9,000 W - exactly half the wattage of the ARRIMAX and just over double the wattage of the M40/25.
Like all M-Series lampheads, the M90 is equipped with MAX Technology, a unique, patented reflector technology that unifies the advantages of a Fresnel and a PAR fixture. The unit is open-faced and as a result, very bright. The unit is also focusable from 16° up to 49° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. The elimination of spread lenses speeds up the workflow on set and reduces the risk of lost production time due to glass breakage.
To fit this lamphead, a new 9,000 W lamp has been developed by Osram according to ARRI's specification, very similar in size to the 6,000 W lamp. This new lamp allowed ARRI to design the M90 in a very compact housing, close to the dimensions of the ARRISUN 60. Since the accompanying EB 6/9 kW ballast uses the housing of the current EB 6000 Baby, and existing 6K head-to-ballast cables, the whole system is highly efficient and comes close to the light output of a traditional 12K PAR (with lens), but within the dimensions of a 6K PAR system.
The new EB 6/9 kW sports ALF (Active Line Filter) and CCL (Compensation for Cable Loss) technology, which compensates for power losses even in very long head-to-ballast cables. This new, incredibly small ballast will also be available in a 1,000 Hz version for high speed shooting with minimized flicker
Features:
• Lens-less MAX Technology
• Closes the gap between M40/25 and ARRIMAX 18/12
• New 9,000 W power class
• New 9,000 W Osram lamp, the size of 6,000 W lamp
• Superior light quality
• Light output matches a 12K PAR (with lens)
• As small and lightweight as a 6K PAR
• Focusable from 16½ up to 49½
• Can also be used with 6,000 W lamps and ballasts
• Uses existing 6K cables
• Cross-cooling allows safe operation until 90½ tilt position
• Tilt locks on both sides hold any heavy accessories
• Easy maintenance
• Weather resistant to IP23
• Possibility to operate at 1,000 Hz
Specifications:
• Type of Lamphead: Open Face Daylight lamphead with MAX reflector
• Reflector: MAX reflector made of high purity aluminium
• Power: 6kW / 9kW
• Lamp Type: 9000W/SE GX38, 6000W/SE GX38
• Supply Voltage: 56A/160 AC (9,000W); 55A/123 AC (6,000W)
• Correlated Color Temperature: 6000K
• Lamp Base: GX38
• Barn Door Size: 584 mm
• Mounting: 28 mm spigot
• Packed Size: 915 x 795 x 950 (W x L x H)
• Packed Volume: 691.0 l
• Packed Weight: 60 kg
• Weight: 39.5 kg
• Dimensions: 713 x 716 x 814 (W x L x H)
• Protection Class: IP23
• Certification: CE, cNRTL, GS, CB
