USED Kino Flo Mini-Flo Kit 9" Universal

Part No: KIT-139X/09

The Mini-Flo System, sometimes called a “car kit,” can be found most often lighting nighttime car interiors and other small areas. However, over the years, the Mini-Flo’s unique lightweight and color control features have endeared it to video and broadcast lighting designers as a cool, efficient chin light for speakers at a podium or news anchors in a TV studio. The Mini-Flo is available with single dimming ballasts, plus a choice of 9” or 12” fixture and lamp sizes.

Mini-Flo Features Include
• 12V Dimming Ballast
• Flicker-free, instant-on
• Runs lamps 9" and 12"
• Removable Lamp Harness
• Focusing Louver
• True Match daylight and tungsten lamps

Mini-Flo System Highlights

• 1-Lamp remote fixture
• Fixture includes Louver and removable Harness
• Same fixture takes daylight and tungsten lamps
• Light enough to tape to car dashboard
• Fixture or Lamp w/ harness runs up to 48ft (15m) (4 x 12ft cables) from ballast
• High Output, Flicker-free Ballast
• Instant-on, dead quiet
• Dimming control
• Same ballast runs 9" & 12" lamps
• UL listed, CE approved

KIT-139X/09
(2x BAL-139X)

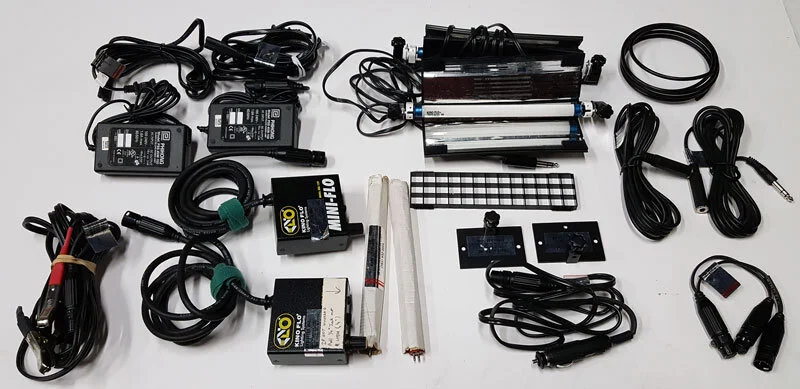

Contents
2 12VDC Mini-Flo Ballast
2 2.4 Amp Universal Power Supply
2 9” Fixture
2 Extension, 12ft
2 Mount
1 Flex Arm, 6ft
1 Alligator Clip Adapter XLR
1 Car Adapter XLR
1 Splitter XLR
4 2x Daylight Lamp 2x Tungsten Lamp
1 Travel Case

Dimensions
21.5 x 7.5 x 16”
(55 x 19 x 41cm)

Weight
13 lb (6kg)
