Kino Flo Freestyle 21 Fixture

Part No: SYS-F21U

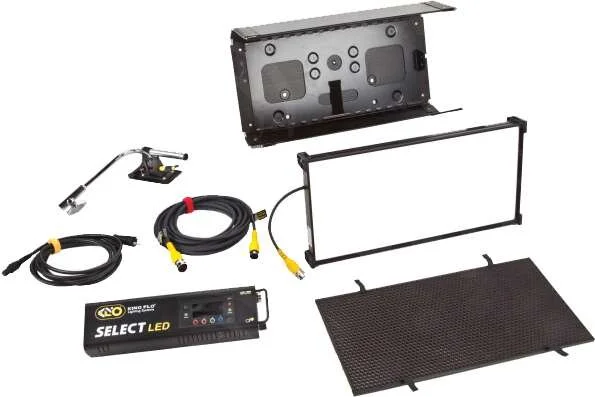

Kino Flo’s new FreeStyle 31; 21 LED unleashes your creative side by using a newly designed quick-release system to remove the LED panel from the plastic housing. The smaller form factor and lightweight LED panel combined with four corner bumpers add further rigging versatility. The LED panel also includes an additional mating plate so it can still be mounted on a stand.

Kino Flo’s new FreeStyle 31 & 21 LED’s include three menu options, one white and two color menus. Those who prefer to work with white light can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.

In the color menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor and over
100 well-known lighting gels. In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These
two channels behave similar to a traditional color wheel, where you have white light in the center, and the Hue angle determines the color along a 360-degree range, and Saturation determines how much color is applied. The second color menu provides individual red, green, blue (RGB) control. The RGB menu is a great way to work with apps with predetermined RGB presets or color wheels.

Kino Flo's new FreeStyle LED’s also come with standard DMX and wireless DMX (Lumen Radio), 24VDC input, and universal voltage input 100-240VAC (1.25 Amps at 120VAC). We also recently added new SnapBag Softbox and SnapGrid accessories.

LED Controller - White Mode
• Kelvin presets & custom settings, 2700K-6500K
• Universal input 100VAC-240VAC or 24VDC
• Manual & DMX Dimming w/ Auto Terminate
• DMX wireless (Lumen Radio)
• Green/Magenta control
• Flicker-free, quiet operation

Gels/Hue Color Mode
In addition to White mode features, Gels/Hue Color mode includes
access to:
• Extended Kelvin color range 2500K-9900K
• Kino Flo presets and Gels
• Dial in any color through Hue Angle and Saturation control

Additional RGB Color mode includes:
• Individual Red, Green, Blue (RGB) control
• Works with Apps with predetermined RGB presets or color wheels

FreeStyle LED Features

1. Kelvin presets

2. Dial-in color temperature control between 2700K-6500K

3. Extended color palette from 2500K-9900K

4. Green/Magenta Control

5. Hue angle and Saturation adjustments

6. RGB control

7. Works with Apps with predetermined RGB presets or color wheels

8. Can use preset buttons to store custom Kelvin settings

9. Light levels do not change when selecting Kelvin settings

10. No color shift while dimming

11. Color-correct with high color rendering index (CRI 95)

12. Universal input 100VAC-240VAC or 24VDC

13. Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC (FreeStyle 31)

14. Flicker-free, quiet operation

15. Full range onboard and DMX dimming

16. DMX wireless link (Lumen Radio)

17. DMX Auto Terminate

18. Remote fixture with built-in barndoors

19. Removable LED panel with center mount and molded corner mounts

20. Fixture includes removable 90 degree Honeycomb Louver

21. Honeycomb louver also available in 60 degree as accessory

22. Removable Center Mount

23. KinoGrip Center Mount

24. Lightweight, slim profile

25. Mounts to stand, light enough to be hand-held

26. Controller mounts onto fixture or operates remotely with extension cable
