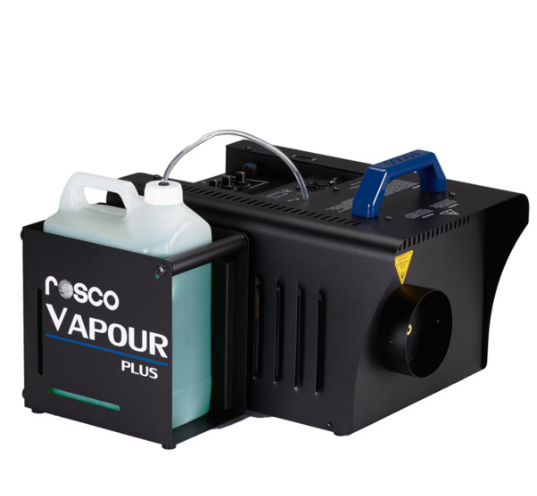

Rosco Vapour Plus Fog Machine - 1500W 120V
Part Number: 200833300120
Highlights
Designed to fill large venues and outdoor spaces
Produces fog quickly and efficiently
Rugged steel case
Maximum 7.2 Liter/Hour Fluid consumption
Designed specifically to fill large venues and outdoor spaces, the Vapour Plus produces impressive amounts of fog quickly and efficiently. The sophisticated software driving the Vapour Plus precisely balances the heating and pump cycles to insure you have huge fog when you need it. At 100% output, the Vapour Plus will run for a full 60 seconds before a short re-heating cycle is needed, and the giant output of this machine is capable of consuming more than 7 liters of fluid per hour!
This fogger produces stadium-sized effects yet is small enough to mount inside box truss and power from a single mains circuit. An innovative, rotating bottle carriage allows the Vapour Plus to be placed in either the traditional horizontal position or in a vertical orientation. This feature, coupled with the massive fog blasts produced by the Vapour Plus, allows the machine to produce cryogenic type burst effects without the hassle of handling/storing large dewar tanks of C02.
Two control options are standard in the Vapour Plus: A detachable timed remote offers convenient local control of output & operation, and an integrated DMX interface allows programmed fog effects via a lighting desk. For maximum versatility, a multi-link feature allows a single Vapour Remote to control up to four Vapour, Vapour Plus, or V-Hazer units that are daisy-chained together via 3-pin XLR.
Wattage:
1500W
Power Requirements:
13.6A at 110 VAC/60hz
6.5A at 230 V AC/50hz
Output:
Maximum 7.2 Liter/Hour Fluid Consumption
Control:
On-Board, Detachable, Timed Remote - 250 second duration, 10' (3M) cable
Integrated, Digital DMX w/ 5-Pin XLR Input & Pass-Thru
Optional Closed-Contact, 0-10v Interface
Dimensions:
19.7in x 10.9in x 9.8in
500mm x 278mm x 249mm
Weight:
31 lbs (14.1 kg)
Housing:
Rugged 12g steel case
Chip resistant powder-coated paint
Approvals:
CE
ETL / cETL
Listed for use by Actor's Equity
AMPTP Safety Bulletin #10 compliant
RoHS Compliant
Warranty:
1 Year
