Kino Flo Image L40 LED DMX Yoke Mount, Univ

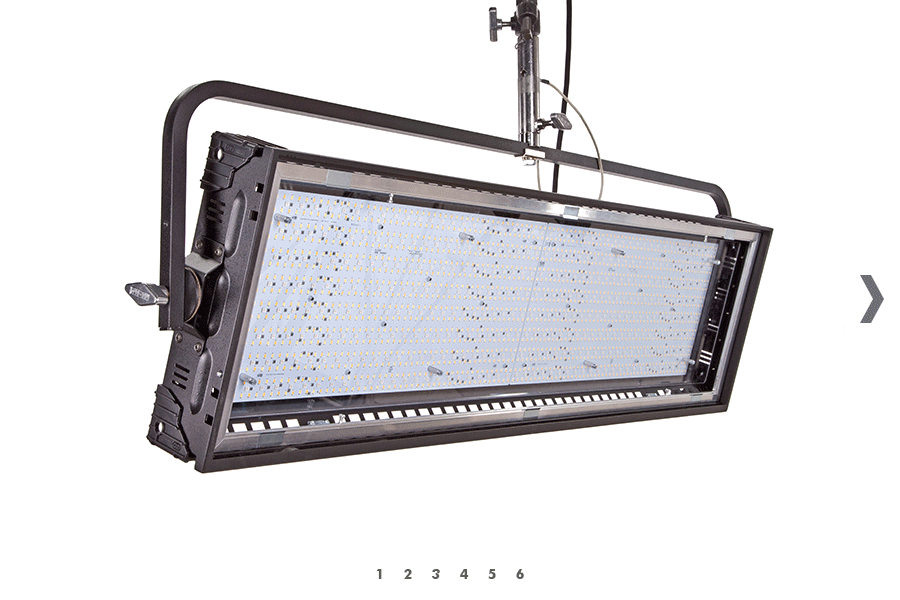

The Image L40 LED joins Kino Flo’s family line of LED soft
lights. One of the largest LED’s in the industry, the Image L40 measures 54â€
x 28†(137cm x 71cm). Light output is 96FC at 10ft (1060 LUX at 3M) but only
uses 4.0A (120VAC).

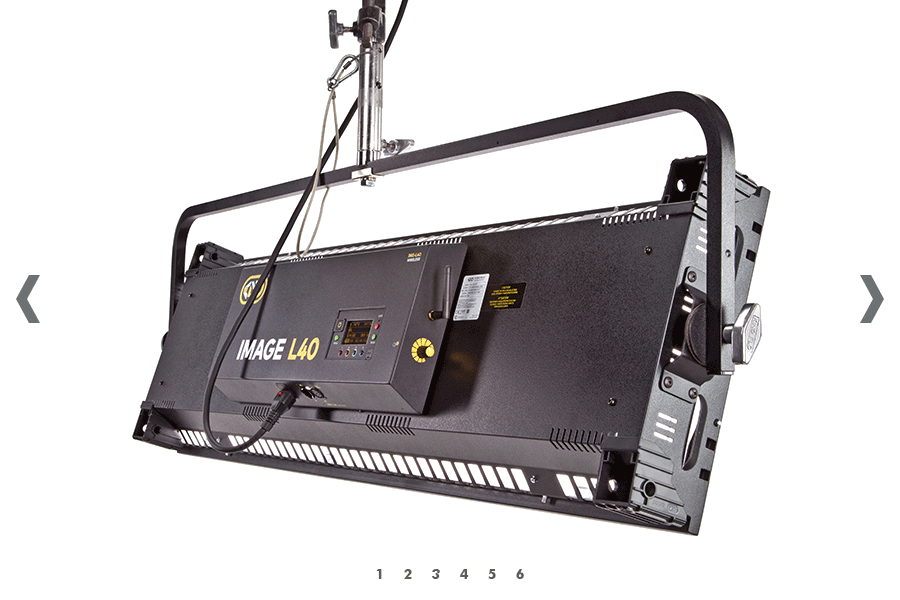

The Image L40 LED’s “All in One†design includes standard DMX in/out ports
for cable as well as wireless DMX connectivity (Lumen Radio). Additional
specifications include universal voltage input 100-240vac. The Image L40
LED’s come complete with removable gel frame and louver and are available in
Yoke mount and Pole-Op models.

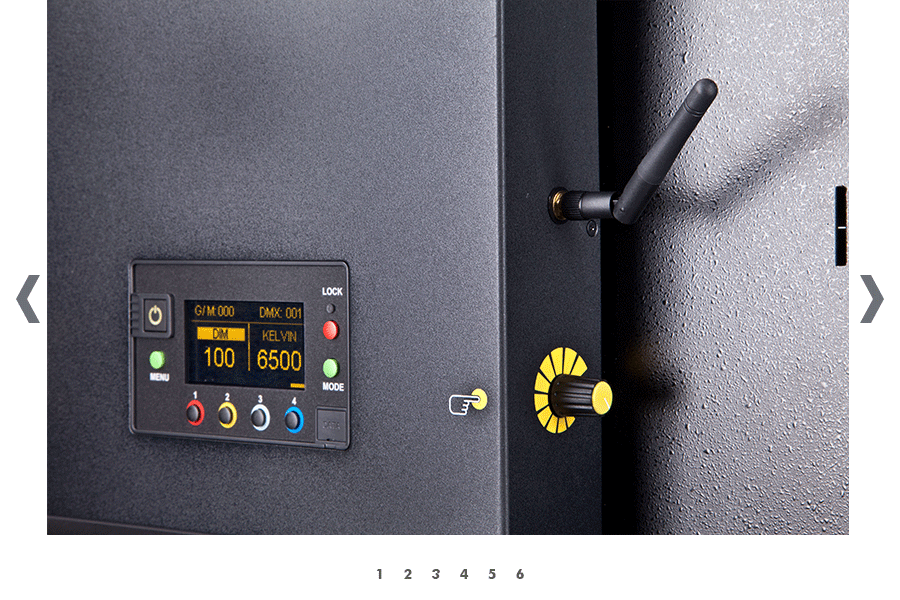

Kino Flo’s Image L40 LED's include 4 menu options, one white, two colors and
FX menu. The White menu features include Dimming, Kelvin and Green/Magenta
control channels. Dimming range is from .02 to 100 percent without
introducing any flicker and can be adjusted in coarse or fine mode by
pressing the control knob in/out. The Kelvin range is tunable from 2700K
tungsten to 6500K daylight. The Green/Magenta control can be scaled from 0
to 100, where 25 = ¼ correction, 50 = ½ correction and 100 = full
correction.
In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K
daylight and a fourth channel is called Gel.The Gel channel includes Kino
Flo presets such as blue & green screen, sodium vapor, mercury vapor as well
as over 100 well-known lighting gels. The gel function can be applied to any
Kelvin temperature and by pushing the control knob in/out, the gel will be
applied or removed. A fifth channel called Hue Angle (Hue) and sixth channel
Saturation (Sat) are also included in the gel menu. These two channels
behave similar to a traditional color wheel, where white light is in the
center and Hue Angle determines the color along a 360-degree range and
Saturation determines how much color is applied. With the Hue Angle and
Saturation it is possible to create over 2 million color combinations!

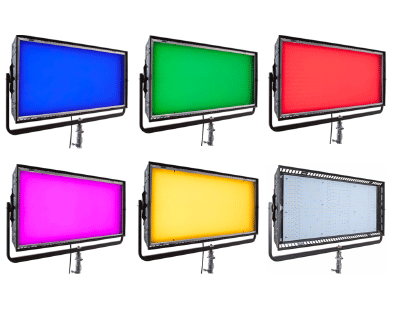

The RGB color menu gives individual control of red, green and blue LED’s.
The RGB mode is a great way to work with apps with predetermined RGB presets
or color wheels. RGB menu is also a great feature to dial in specific gel
RGB values or when controlling colors from a DMX desk.
The FX (Effects) menu introduced on June 1, 2018 provides access to popular
effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and
Scroll. When on the desired effect, there are several pre-sets as well as
control parameters that can be altered. For example, in the Lightning effect
there is a “Storm†and “Frankenstein†preset, but it is possible to change
Rate to provide additional variation.
Specifications:
• Kelvin presets
• Dial-in color temperature control between 2700K-6500K
• Extended color palette from 2500K-9900K
• Green/Magenta Control
• Hue angle and Saturation adjustments
• RGB Control
• FX Control
• Works with Apps with predetermined RGB presets or color wheels
• Can use preset buttons to store custom Kelvin settings
• Light levels do not change when selecting Kelvin settings
• No color shift while dimming
• Color-correct with high color rendering index (CRI 95)
• Universal input 100VAC-240VAC
• Energy efficient, draws 4A, 120VAC
• Flicker-free, quiet operation
• Full range onboard and DMX dimming
• DMX wireless link (Lumen Radio)
• DMX Auto Terminate

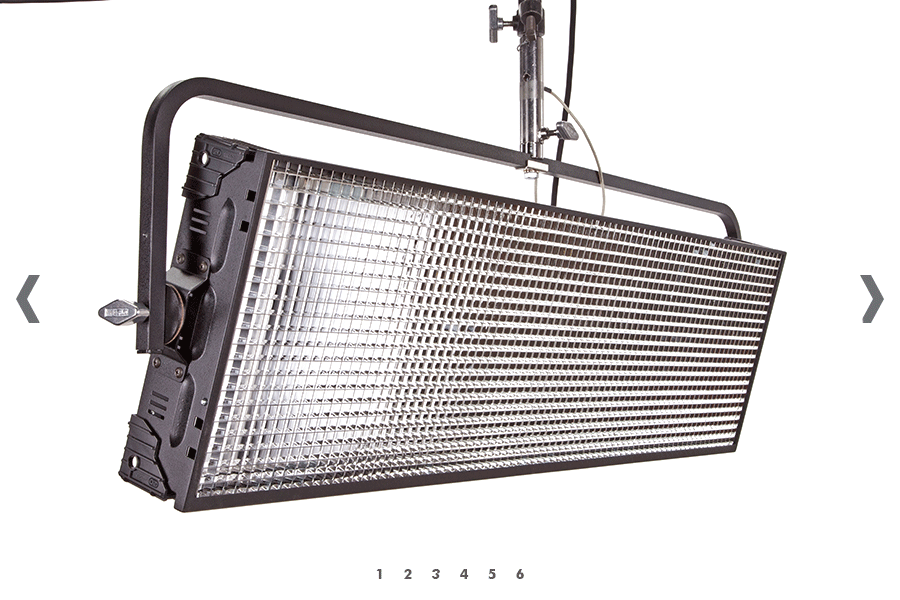

• Metal Alloy fixture includes removable Gel Frame, Louver and cardholders
• Slim profile
• Mounts to stand or can hang easily from a grid

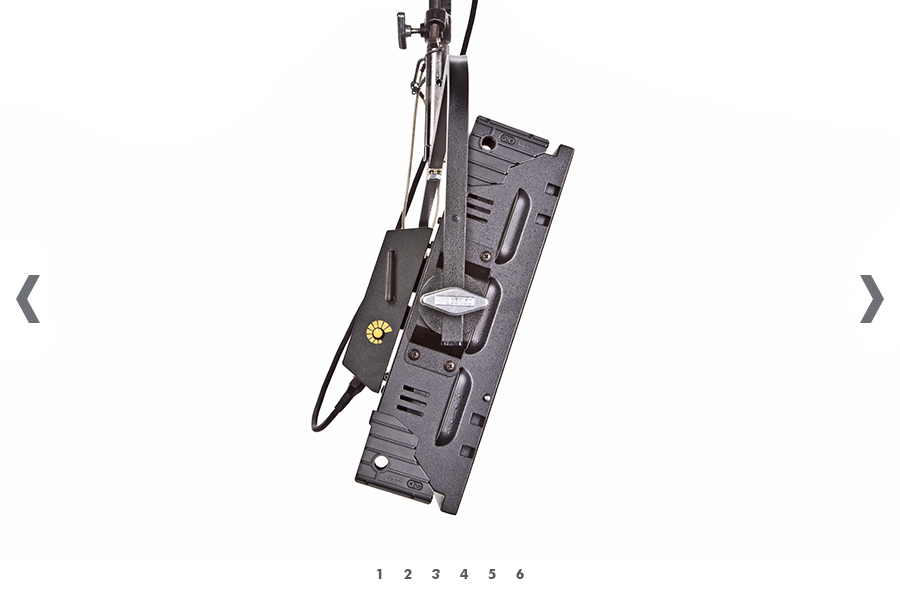

• Traditional Yoke Mount with two position setting, Pole-Op
