Kinoflo Diva - Lite 31 LED

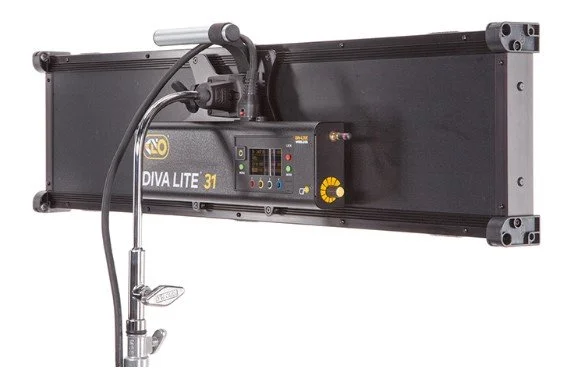

The Diva-Lite 31 comes as center mount with a carry handle or yoke mount option. It also provides a smaller profile for studios that have low ceilings. Both versions feature four corner bumpers that can be used to hang from rope or wire. A honeycomb Louver (90° or 60°) is held in place with Velcro and gives direction to the light or can be easily removed to give broad coverage over the set. For those that like the plastic fixture shell, Diva-Lite 30 is also available.
The Diva-Lite 31’s “All in One” design includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio®). Additional specifications include universal AC voltage input 100-240vac (1.25 Amps at 120vac) as well as a 3-Pin XLR for 24vdc operation (6.25A).
The Diva-Lite LED fixture includes built-in DMX electronics with wireless capability, removable 90° Honeycomb Louver and center mount with baby receiver lollipop. It is also available as a Yoke Mount. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.
Diva-Lite 31 LED Features
Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
Kelvin presets
Dial-in color temperature control between 2500K-9900K
Green/Magenta Control
Hue angle and Saturation adjustments
Kino Flo presets and Gels
RGB Control
CIE xy
FX Control
Camera Profiles LUTs
Color Space
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings
Light levels do not change when selecting Kelvin settings
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
Flicker-free, quiet operation
Diva-Lite 31 LED Design
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio)
DMX Auto Terminate
No color shift while dimming
Fixture includes removable 90° Honeycomb Louver
Honeycomb louver also available in 60° as accessory
Center Mount, Yoke Mount
Molded Corner Mounts
Mounts to stand, light enough to be hand-held
Lightweight, slim profile
