Kobold DW 800 PAR Production Kit

$7,799.00
Part No: K-332-U190

The DW 800 PAR kit, commonly used for theatre, concert and motion picture productions, is perfect for when high light output and flat lighting is needed. The PAR lenses can be added to further shape and focus the light needed.

KIT INCLUDES:

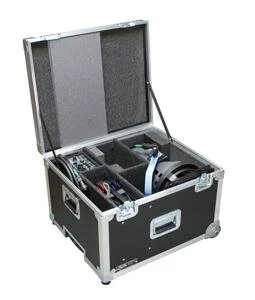

  • DW 800 Production Case
  • 2 9" Full Double Scrims
  • 1 9" Full Single Scrim
  • 800 Watt HMI Lamp
  • 2 Lamp Cable (25FT) for DW 800
  • Multipurpose Lamp Base DW 800
  • Set of PAR Lenses, 4 Pieces (NSP,MFL,WFL,VWFL)
  • HMI Multipower Ballast Unit EWB 400.575.800
  • 4 Leaf Barn Door for DW 800
  • PAR Reflector for DW 800
  • DW 800 Lens Bag
The focusable 800 W multipurpose daylight spotlight lampbase Kobold DW 800 can be equipped with interchangeable reflectors. Depending on the selected attachment, the lampbase provides all the capabilities of a PAR, Open Face or Fresnel light, as well as the capability to attach a Softbox or Lantern. The conversion is simple and no tools are needed due to a locking mechanism. The optimized design of the reflectors achieve a high light output and an homogeneous illumination. The ergonomically positioned rotary knob enables focusing of 12¡- 70¡. These daylight fixtures impress with their solid design, compact dimensions and maximum reliability, for indoors and outdoors. The housing is made of high-strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is airtight and allows instant cold and hot striking even in a humid environment. Further characteristics are the lightweight and compact dimensions, no stray light, heat resistant ceramic safety glass, and a wide range of accessories. The DW line of Kobold HMI units are weather resistant from water, dust and dirt with a safety class of IP54 (with mounted reflector) making them ideal for use in all indoor and outdoor conditions.

The extremely compact electronic multipower ballast units features automatic lamp detection to allow the highly convenient operation of 400 W, 575 W and 800 W daylight lamp bases (plug and play).

Kobold splashwater-protected (IP 43) EWB ballast units are equipped with an automatic voltage detection circuit for ratings from 85 V to 265 V 50 / 60 Hz. Even at very high ambient temperatures, the patented temperature management system assures safe and reliable operation.
  • Flicker-free operation
  • Water splash protection (IP43)
  • Doubled safety due to reinforced insulation and protective earth
  • Automatic heater for fast ready times
  • Controlled, constant output for consistent light quality
  • High reliability due to electronic monitoring system
  • Patented temperature management
  • Light weight and compact design
  • High efficiency ~ 90%
  • Power factor control (PFC)
  • Automatic voltage recognition 85V Ð 265 V
  • Automatic lamp detection
Quantity:
Add To Cart
Part No: K-332-U190

The DW 800 PAR kit, commonly used for theatre, concert and motion picture productions, is perfect for when high light output and flat lighting is needed. The PAR lenses can be added to further shape and focus the light needed.

KIT INCLUDES:
  • DW 800 Production Case
  • 2 9" Full Double Scrims
  • 1 9" Full Single Scrim
  • 800 Watt HMI Lamp
  • 2 Lamp Cable (25FT) for DW 800
  • Multipurpose Lamp Base DW 800
  • Set of PAR Lenses, 4 Pieces (NSP,MFL,WFL,VWFL)
  • HMI Multipower Ballast Unit EWB 400.575.800
  • 4 Leaf Barn Door for DW 800
  • PAR Reflector for DW 800
  • DW 800 Lens Bag
The focusable 800 W multipurpose daylight spotlight lampbase Kobold DW 800 can be equipped with interchangeable reflectors. Depending on the selected attachment, the lampbase provides all the capabilities of a PAR, Open Face or Fresnel light, as well as the capability to attach a Softbox or Lantern. The conversion is simple and no tools are needed due to a locking mechanism. The optimized design of the reflectors achieve a high light output and an homogeneous illumination. The ergonomically positioned rotary knob enables focusing of 12¡- 70¡. These daylight fixtures impress with their solid design, compact dimensions and maximum reliability, for indoors and outdoors. The housing is made of high-strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is airtight and allows instant cold and hot striking even in a humid environment. Further characteristics are the lightweight and compact dimensions, no stray light, heat resistant ceramic safety glass, and a wide range of accessories. The DW line of Kobold HMI units are weather resistant from water, dust and dirt with a safety class of IP54 (with mounted reflector) making them ideal for use in all indoor and outdoor conditions.

The extremely compact electronic multipower ballast units features automatic lamp detection to allow the highly convenient operation of 400 W, 575 W and 800 W daylight lamp bases (plug and play).

Kobold splashwater-protected (IP 43) EWB ballast units are equipped with an automatic voltage detection circuit for ratings from 85 V to 265 V 50 / 60 Hz. Even at very high ambient temperatures, the patented temperature management system assures safe and reliable operation.
  • Flicker-free operation
  • Water splash protection (IP43)
  • Doubled safety due to reinforced insulation and protective earth
  • Automatic heater for fast ready times
  • Controlled, constant output for consistent light quality
  • High reliability due to electronic monitoring system
  • Patented temperature management
  • Light weight and compact design
  • High efficiency ~ 90%
  • Power factor control (PFC)
  • Automatic voltage recognition 85V Ð 265 V
  • Automatic lamp detection
Part No: K-332-U190

The DW 800 PAR kit, commonly used for theatre, concert and motion picture productions, is perfect for when high light output and flat lighting is needed. The PAR lenses can be added to further shape and focus the light needed.

KIT INCLUDES:
  • DW 800 Production Case
  • 2 9" Full Double Scrims
  • 1 9" Full Single Scrim
  • 800 Watt HMI Lamp
  • 2 Lamp Cable (25FT) for DW 800
  • Multipurpose Lamp Base DW 800
  • Set of PAR Lenses, 4 Pieces (NSP,MFL,WFL,VWFL)
  • HMI Multipower Ballast Unit EWB 400.575.800
  • 4 Leaf Barn Door for DW 800
  • PAR Reflector for DW 800
  • DW 800 Lens Bag
The focusable 800 W multipurpose daylight spotlight lampbase Kobold DW 800 can be equipped with interchangeable reflectors. Depending on the selected attachment, the lampbase provides all the capabilities of a PAR, Open Face or Fresnel light, as well as the capability to attach a Softbox or Lantern. The conversion is simple and no tools are needed due to a locking mechanism. The optimized design of the reflectors achieve a high light output and an homogeneous illumination. The ergonomically positioned rotary knob enables focusing of 12¡- 70¡. These daylight fixtures impress with their solid design, compact dimensions and maximum reliability, for indoors and outdoors. The housing is made of high-strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is airtight and allows instant cold and hot striking even in a humid environment. Further characteristics are the lightweight and compact dimensions, no stray light, heat resistant ceramic safety glass, and a wide range of accessories. The DW line of Kobold HMI units are weather resistant from water, dust and dirt with a safety class of IP54 (with mounted reflector) making them ideal for use in all indoor and outdoor conditions.

The extremely compact electronic multipower ballast units features automatic lamp detection to allow the highly convenient operation of 400 W, 575 W and 800 W daylight lamp bases (plug and play).

Kobold splashwater-protected (IP 43) EWB ballast units are equipped with an automatic voltage detection circuit for ratings from 85 V to 265 V 50 / 60 Hz. Even at very high ambient temperatures, the patented temperature management system assures safe and reliable operation.
  • Flicker-free operation
  • Water splash protection (IP43)
  • Doubled safety due to reinforced insulation and protective earth
  • Automatic heater for fast ready times
  • Controlled, constant output for consistent light quality
  • High reliability due to electronic monitoring system
  • Patented temperature management
  • Light weight and compact design
  • High efficiency ~ 90%
  • Power factor control (PFC)
  • Automatic voltage recognition 85V Ð 265 V
  • Automatic lamp detection
