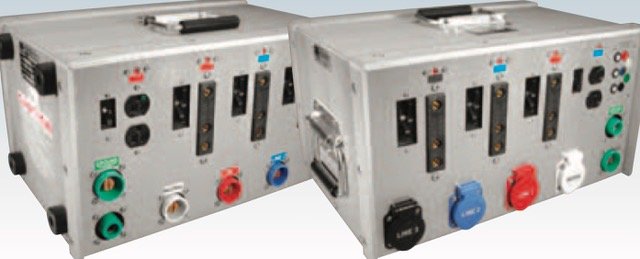

AC Power 1200 Amp Camlock Flow-Thru to 100amp 120v Distro
Part No: CF1200
Specifications:
Phase & Amperage (line/total): 3-phase 300a / 900a
Input Type: Flow Thru 3-phase 400a 208Y-/120v Camlock Type
Output Type: 3-100a 125v & 3-100a 240v Stage Pin, 2-20a Courtesy, & Test Jacks
Circuit Protection: 3-100a 120v, 3-100a 240v, & 2-20a 120v Circuit Breakers (10k AIC)
Dimensions: 19.5"L x 12.5"W x 11.5"H
Weight: 44lbs.
Your choice of most Colors for anodizing edge banding to fit your branding.
