Mole LED SPECIAL 400W Studio JUNIORLED DAYLIGHT 10" DMX Retr
$2,959.99
Part No: 897110
The MoleLED Fresnels are powered by a new, proprietary Mole-Richardson Co. Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED. This Patent Pending LED board represents the first time QD LED’s are being used in the film, television and broadcast industries.
Specifications
Heads: Type 8971 Daylite
Rating: 90-250 Volts AC, 50-60Hz, 400 Watts, 4 Amps Max.
DMX Standby Draw <.20 Amps Max.
Light Source: (1) - 400 Watt Mole-Richardson Quantum Dot LED
5600K 90CRI Daylight
Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor,
#18 AWG with NEMA 5-15 Edison
(Other plugs and wire lengths available upon request)
Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
Fuse: 4 Amp Slow-Blow. Fuseholder in Trough
Dimming: Flicker Free, Direct DC Dimming
On-Board Dimmer 100% -10% (Minimal Color Shift)
DMX Dimmer 100% - 0% (Minimal Color Shift)
Control: DMX512-A In and Out. Manual DMX Address Selector
Condenser: 10 in (254mm) Borosilicate Glass Fresnel
Beam Angle: 10° to 55° Variable Spot to Flood (Includes Field)
Focusing: Rotating Knob on Front and Back
Cooling: Passive-Forced Air
Construction: Aluminum and Steel with Interlocking Channels
Yoke: Cast Aluminum w/Standard 11/8 in (29mm) Pin
Compliance: RoHS. CE, UL, CSA Pending
IP Rating: 30
Finish: Textured Black Powder Epoxy Coat. (Other Colors Available)

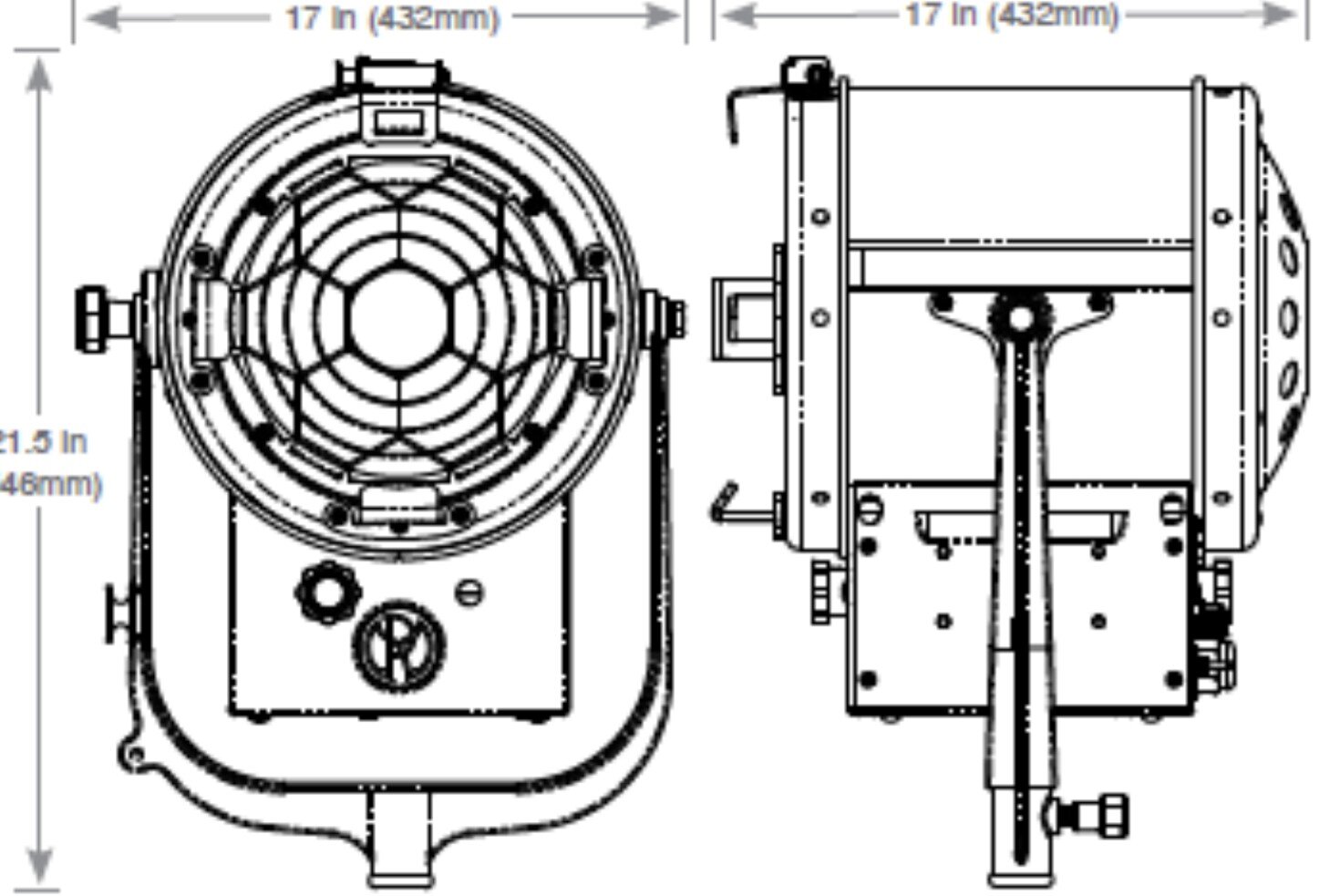

Size: 17 in/432mm(d) x 17 in/432mm(w) x 211/2 in/546mm(h)
Head Weight: 24lbs/11.11kg (Head Only)
27.5lbs/12.25kg (Head with 25ft/7.6m cable)
