Mole LED SPECIAL 100W TWEENIELED Tungsten 4 1/2" Fresnel
$1,283.50
Part No: 8801
Pound for pound, it’s everything you’ve come to expect from a Tweenie and so much more. Seamless conbination with existing Tungsten Halogen Incandescent, similar performance and optics as other 4.5" (114mm) Mole Fresnels, and about 80% less power consumption.
Specifications
Heads: Type 8901 Tungsten and Type 8911 Daylite
Rating: 90-250 Volts AC, 50-60Hz, 100 Watts, 0.5-1 Amps Max.
DMX Standby Draw <.05 Amps Max.
Light Source: (1) - 100 Watt Mole-Richardson Quantum Dot LED

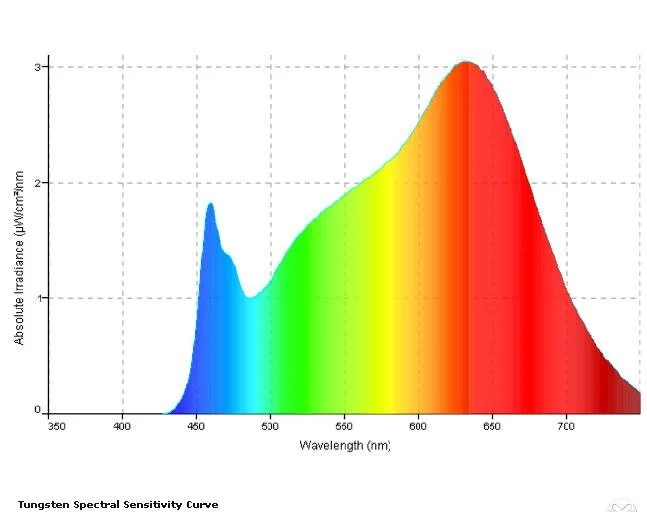

3200K 95CRI Tungsten
Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor,
#18 AWG with NEMA 5-15 Edison
(Other plugs and wire lengths available upon request)
Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
Fuse: 1 Amp Slow-Blow. Fuseholder in Trough
Dimming: Flicker Free, Direct DC Dimming
On-Board Dimmer 100% -10% (Minimal Color Shift)
DMX Dimmer 100% - 0% (Minimal Color Shift)
Control: DMX512-A In and Out. Manual DMX Address Selector
Condenser: 41/2 in (113mm) Borosilicate Glass Fresnel
Beam Angle: 22° to 56° Variable Spot to Flood (Includes Field)
Focusing: Rotating Knob on Front and Back
Cooling: Passive-Forced Air
Construction: Aluminum and Steel with Interlocking Channels
Yoke: Cast Aluminum w/Standard 5/8 in (16mm) Receiver
Compliance: RoHS. CE, UL, CSA Pending
IP Rating: 30
Finish: Textured Black Powder Epoxy Coat. (Other Colors Available)
Size: 8 in/200mm(d) x 9 in/229mm(w) x 16 in/406mm(h)
Head Weight: 6lbs/2.72kg (Head Only)
8lbs/3.63kg (Head with 25ft/7.6m cable)
